M.2 (B, M – keys) to MiniPCIe Adapter

M.2 (B, M – keys) to MiniPCIe Adapter

Request a Quote

Overview:

M.2 adapter has MiniPCI express and SIM connectors. It allows connection MiniPCIe modules to M.2 circuit with B-key or M-key. Adapter can be installed in M.2 2030 or 2040 circuits (length 30mm or 40 mm). It supports PCI Express, USB3, USB 2 and SIM interfaces on the MiniPCIe circuit.

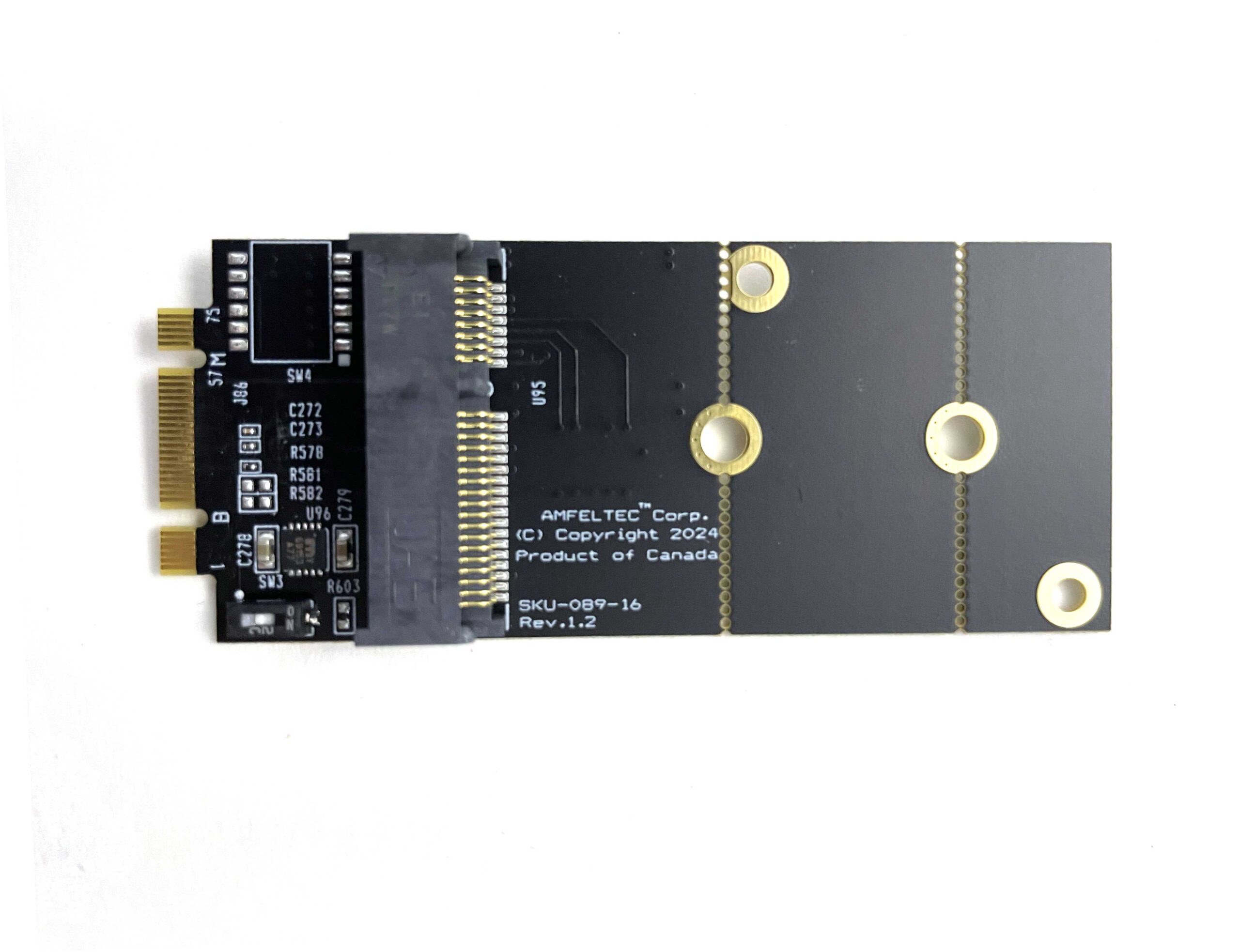

M.2 to MiniPCIe Adapter
(top view)

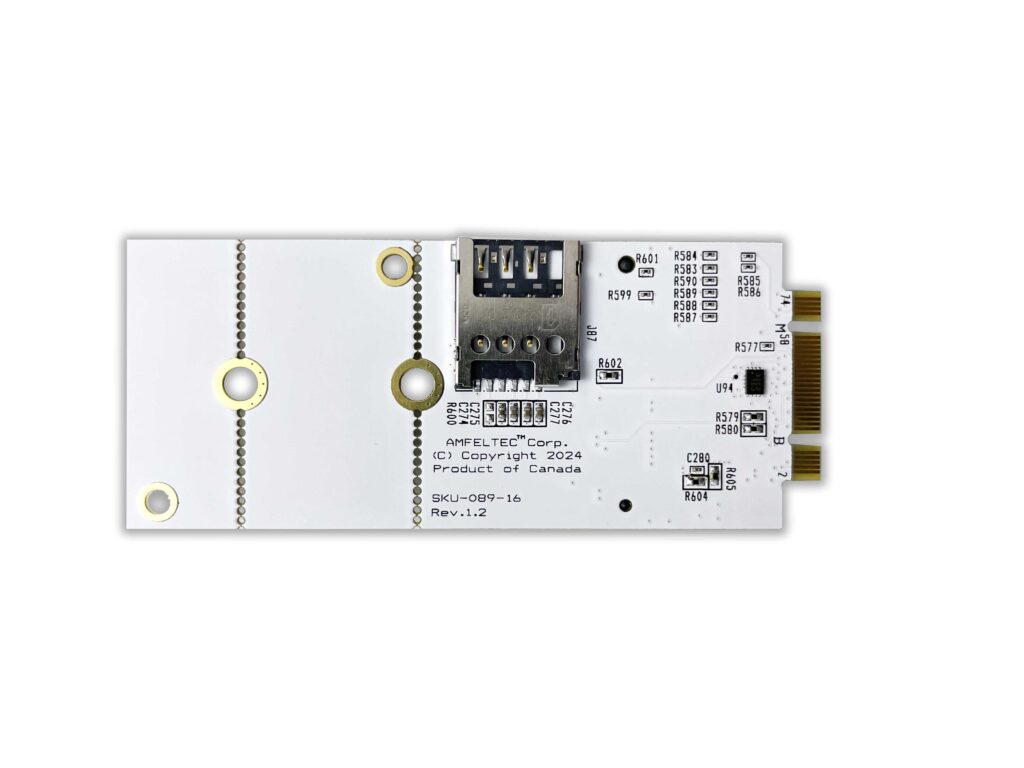

M.2 to MiniPCIe Adapter
(bottom view)

Specifications:

  • M.2 module with B-key and M-key and size 2030 or 2040 (length 30mm or 40mm)
  • Supports PCIe/USB 3 lanes (M.2 connector pins 29, 31, 35, 37) or
    PCIe lanes (M.2 connector pins 41, 43, 47, 49)
  • Supports USB 2 interface and MiniPCIe SIM interface
  • Compliant with MiniPCIe Specification and M.2 Specification

Part Number:

  • SKU-089-16      M.2(B, M-keys) to MiniPCIe Adapter
    _____________(PCIe, USB 3, USB 2 and SIM interfaces)
