MiniPCI Express to M.2 USB Adapter (B-key)
MiniPCI Express to M.2 USB Adapter (B-key)
Overview:
MiniPCI Express Adapter has M.2 (B-key) connector. It allows connection M.2 modules with M.2 (B key) to a MiniPCI Express circuit. Adapter can be installed in Full size or Half size MiniPCI Express circuits, and this Adapter supports USB 3.0, SIM and USB 2.0 interfaces.

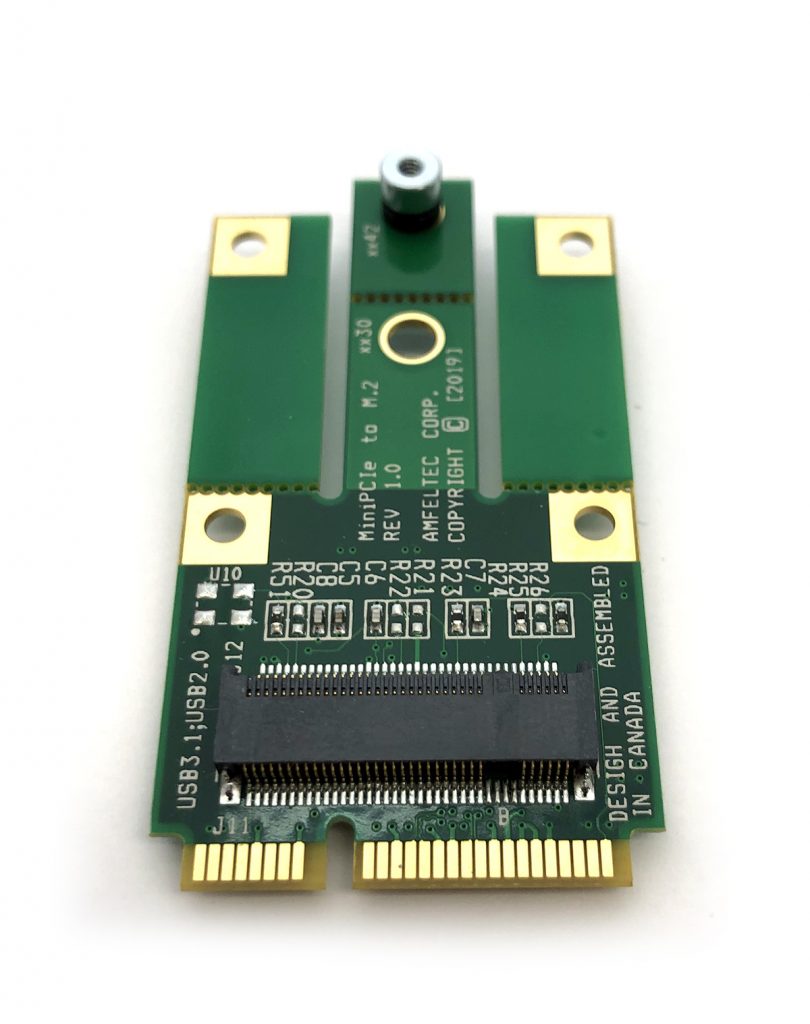

MiniPCI Express to M.2 USB Adapter (B-key)
(Top view)

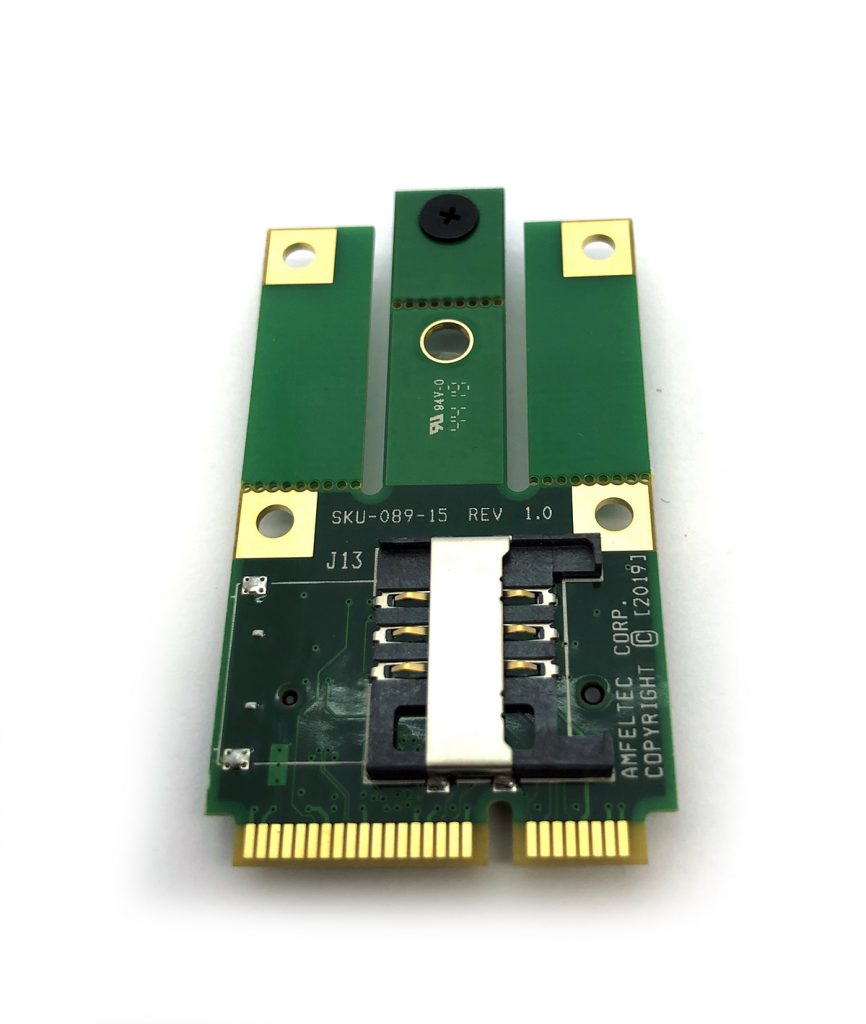

MiniPCI Express to M.2 USB Adapter (B-key)
(Bottom view)
Specifications:
- Full / Half size MiniPCI Express form factor
- Supports M.2 modules with length 30 and 42 mm with B-key
- Supports M.2 socket 2 USB 3.0-based WWAN module pinout
- Supports USB 3.0, SIM and USB 2.0 interfaces
- Compliant with MiniPCIe Specification 2.1 and M.2 Specification 1.2
Part Number:
- SKU-089-15 __MiniPCI Express to M.2 USB Adapter (B-key)
_____________(USB 3.0, SIM and USB 2.0 interfaces)
