Piranha USB-FXO Adapter

Piranha USB-FXO Adapter

Request a Quote

Overview:

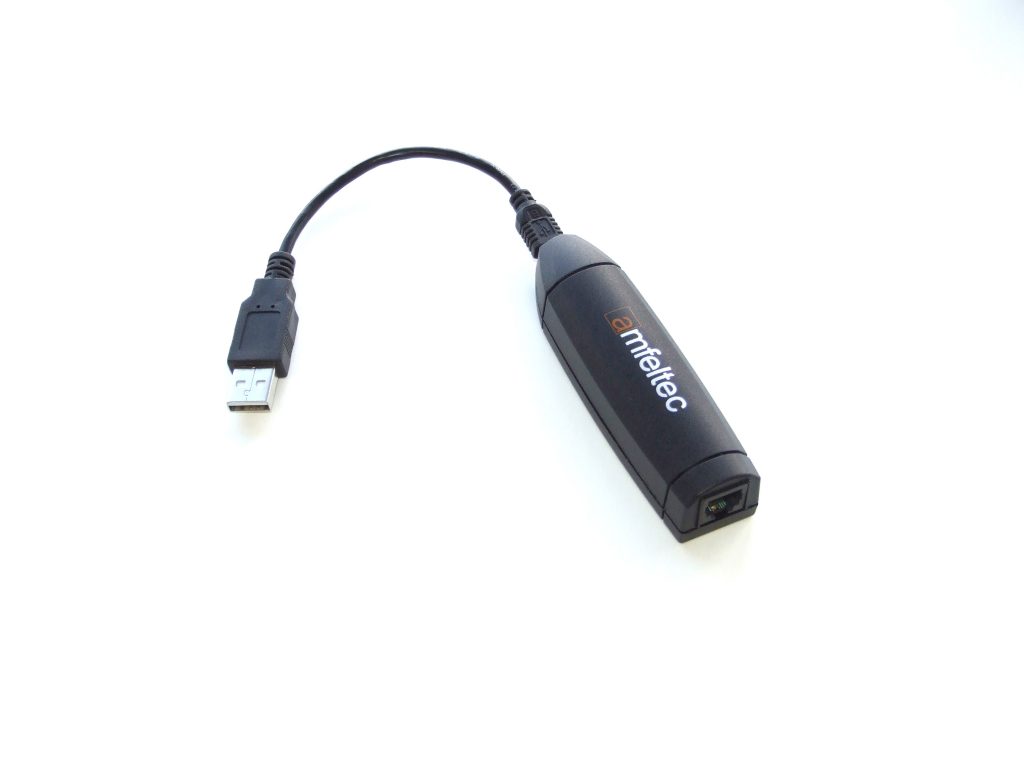

Piranha USB-FXO Adapter with USB cable

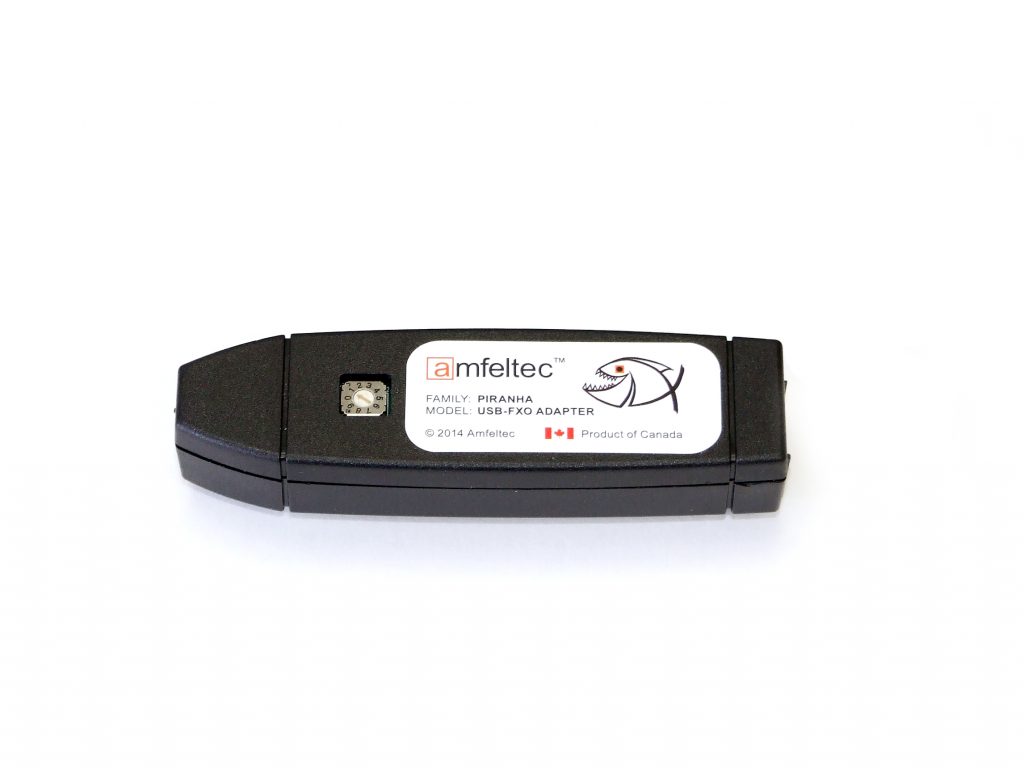

Piranha USB-FXO Adapter (reverse)

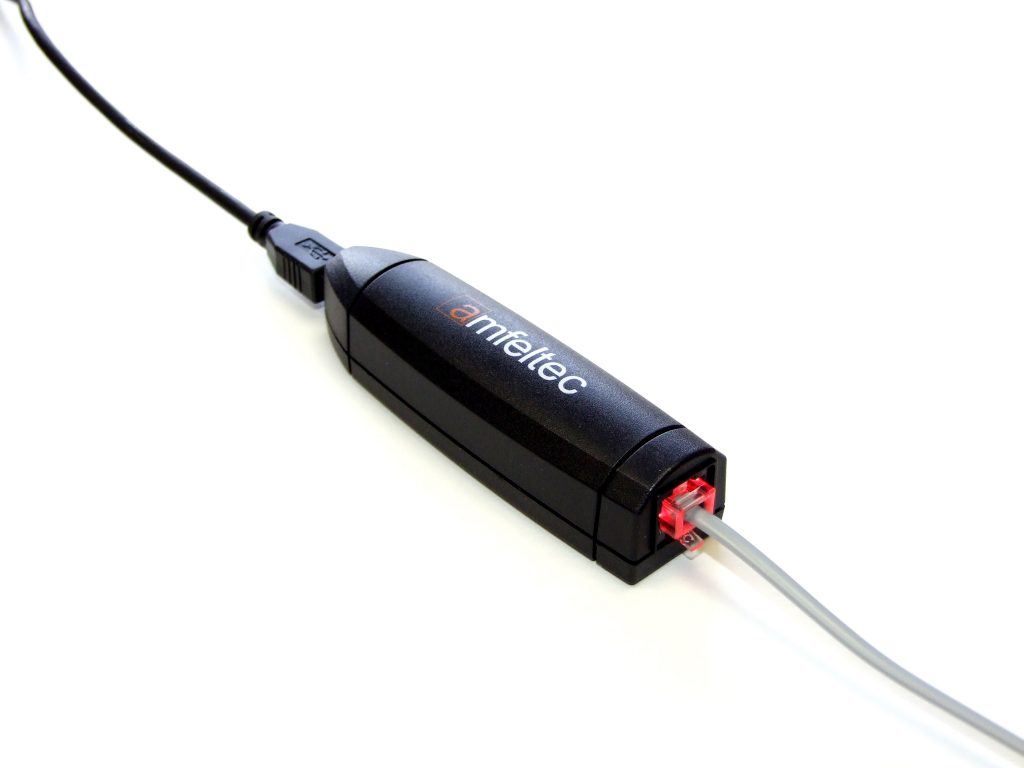

Piranha USB-FXO Adapter
(linking PSTN telephone cable to USB)

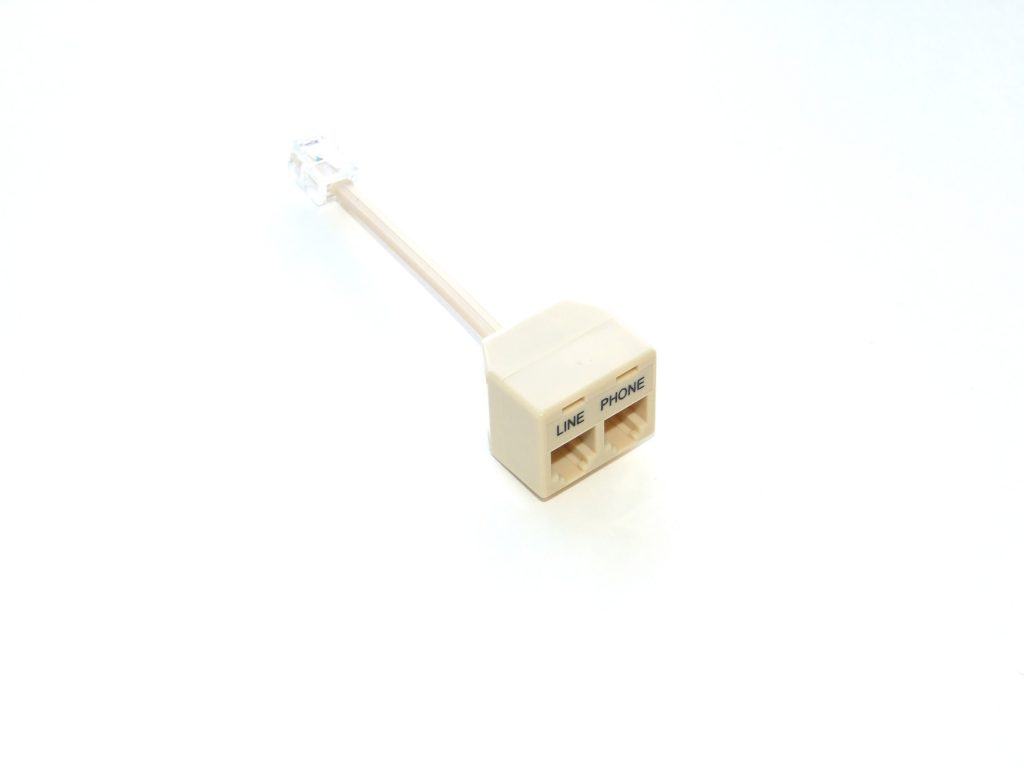

Splitter (for fail-over feature)

The Piranha USB-FXO Adapter is the first product in the Piranha USB Adapter™ family. This device simplifies and makes a cost-effective PSTN connection for telecommunication systems. Our design is ultra-compact – this USB-FXO adapter is designed to be a part of the actual cable between the PSTN jack in your wall and your system’s USB port. The adapter is produced in two configurations:

1) Standard Application:

2) Fail-over Application:

All AMFELTEC PRODUCTS ARE DEVELOPED & PRODUCED IN CANADA

Specifications:

Simple PSTN connection with load maximum 0.2 REN
Line protection based on resettable fuses
USB 2.0 compliant PBX connection
Powered via USB interface, maximum load 75 mA@5V
Supports Asterisk®, and has direct connection to DAHDI 2.10
Supports fail-over on PSTN line to backup analog phone
(in case of power outage,computer freeze, or system misbehaviour)
Field-upgradeable firmware
Ultra-small plastic enclosure: 95 mm. x 24 mm. x 23 mm.
Commercial operation temperature range: from 0°C to +75°C (optionally Industrial)
Weight 29g.
RoHS compliant
